7.2. Adding Widgets to Regions

To add a widget to a region:

  1. Click Widgets in the Perforce Chronicle toolbar.
  2. Chronicle displays highlighted regions indicating existing widgets that can be configured, along with a "+" button for adding widgets.

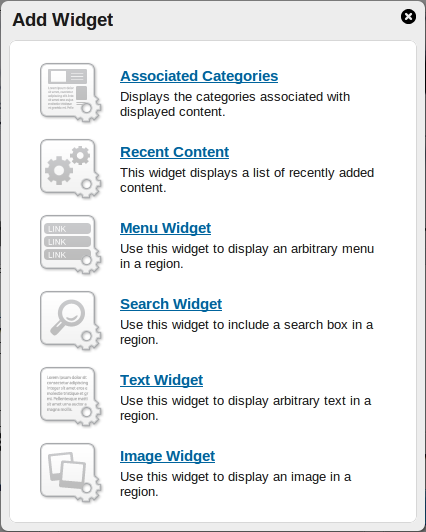

  3. Click the "+" button. Chronicle displays the Add Widget dialog, listing the available widgets.

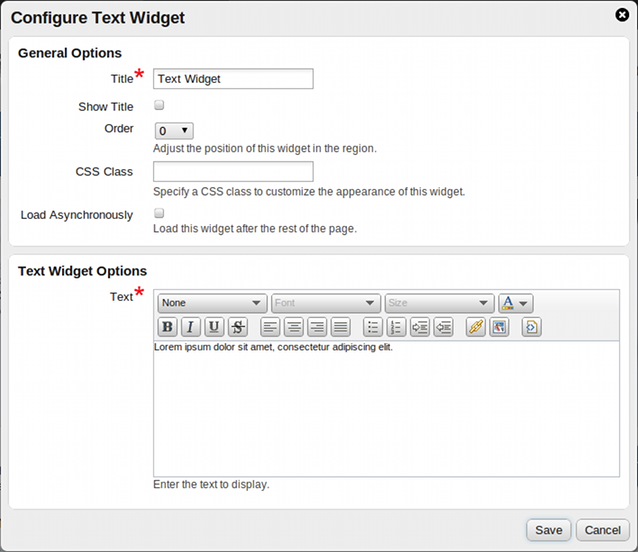

  4. Click the widget you wish to add. At this point, the widget has been added to the region, but is not yet configured. A Configure Widget dialog appears; its title indicates the type you selected.
  5. Fill in the configuration for the widget. Please see Section 7.3.1, “Widget Configuration Options” for more details.
  6. Click Save to use the configuration for the new widget.
